Melters, built for a
high-SKU world
Small footprint. Massive capacity. Easy to clean.
The way melters should be.
The game has changed.
Why haven’t your melters?
In the 90s, a candy company could be successful with one product with a few varieties. Today, Reese’s alone has 132 variants. Times have changed. But most melters haven’t.
Large tanks eating up your real estate
You need more melting capacity, but you’re starting to run out of space.
Cleaning melters between runs is a nightmare

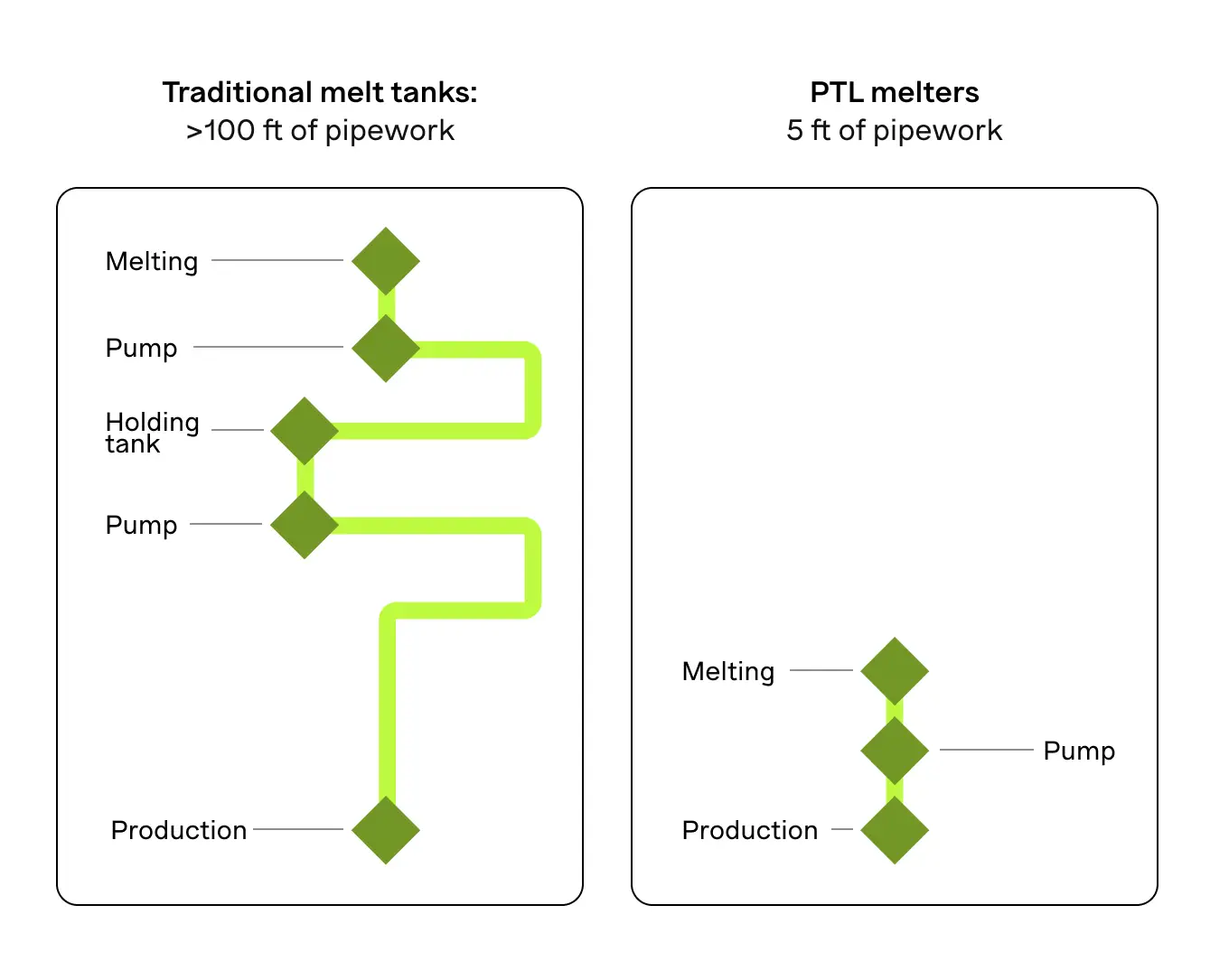

When marketing & sales throw a new SKU at you, you wince at the idea of cleaning tanks, pumps and 100 feet of pipework.
Tanks are slow and easily jam
Plans change all the time, but your melters need 12 hours notice and constant babysitting to get the next batch ready.
Add massive melting capacity
on a 5x smaller footprint
Limited space in your facility? Not a problem.
With RapidMelt™ Technology, you can add melting capacity without outgrowing your space.

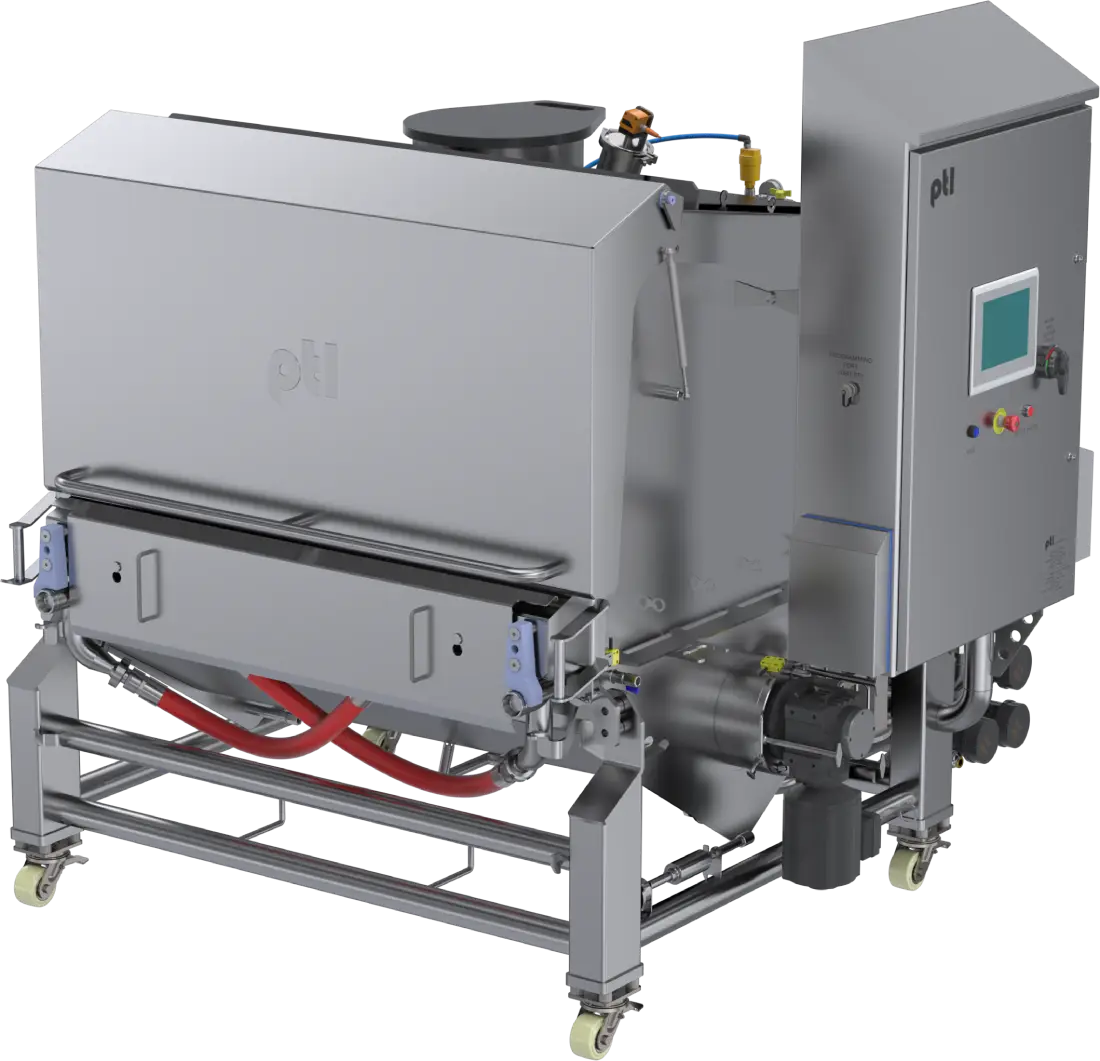

Size of PTL melter

Size of traditional
tank melter setup

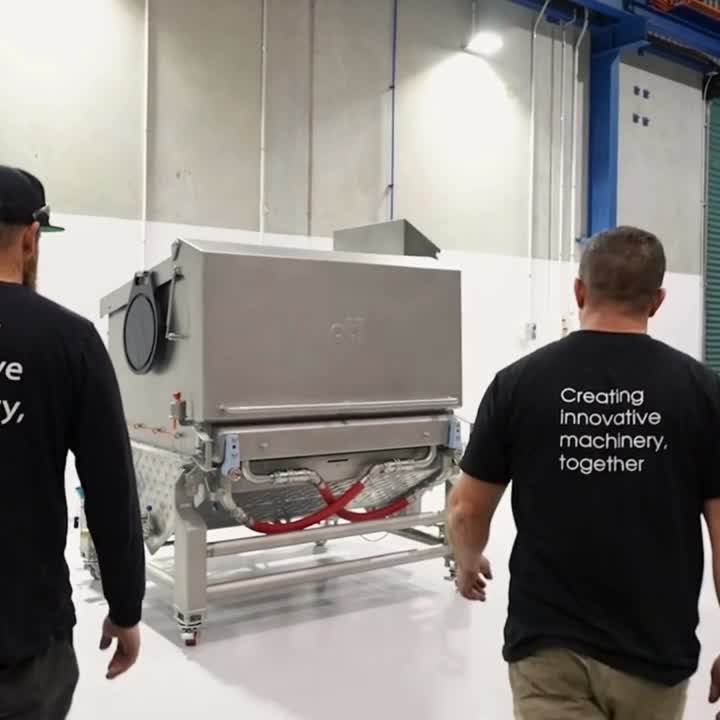

Easily clean your melter between coatings
Now, you’re ready for any new SKU marketing and sales throw at you, without risking allergen recalls or lengthy cleaning downtime.

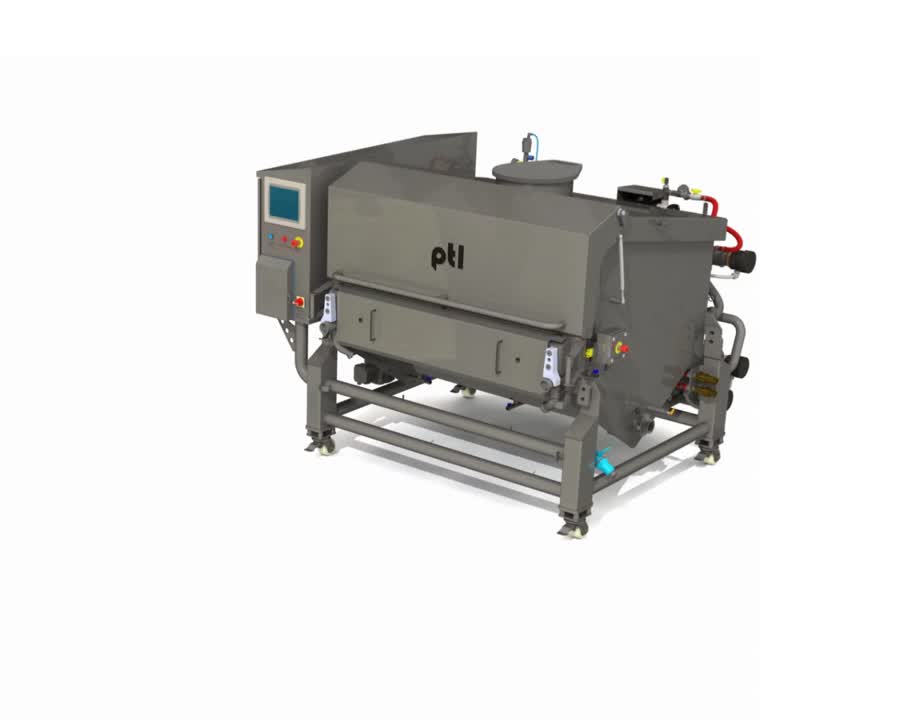

Rapidly melt any amount of chocolate with less downtime
Say goodbye to production bottlenecks and melters that easily jam.
PTL melters provide liquid chocolate in as little as 30 minutes. By keeping solid chocolate separate from the stirrer, we prevent jams and expensive downtime.
as fast as
30 min
from solid to production-ready chocolate
up to
125%
higher melt rate
Loading options
Manual loading
with ergonomic table

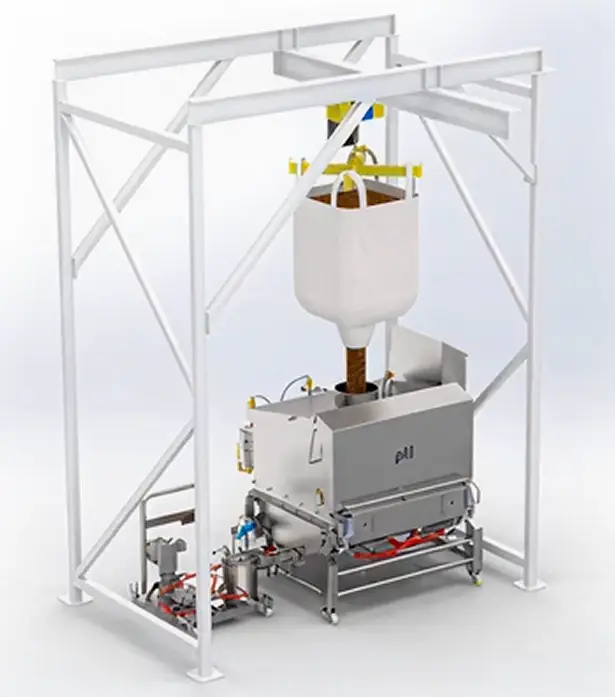

Bulk bag

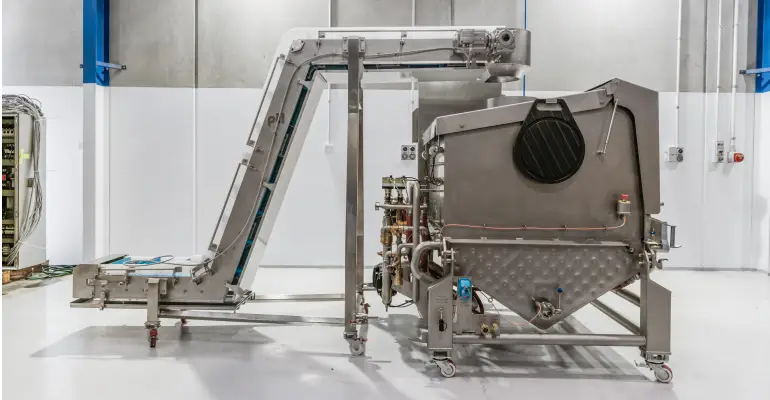

Incline conveyor

Manual loading
without the backache
Loading large bags overhead or from a raised platform will get your people hurt. That’s why we’ve lowered our melter’s opening to waist height and added a loading table.
Change
your melter
change
the game
Need real stats? Get in touch.
| Traditional tanks | PTL melters | |
|---|---|---|
| Max. throughput | Snail’s pace | Full throttle |
| Footprint | Colossal | Compact |
| Cleaning | A nightmare | Fast and thorough |
| Start-up time | ~12 hours | <30 minutes |
Available sizes
Get pricing

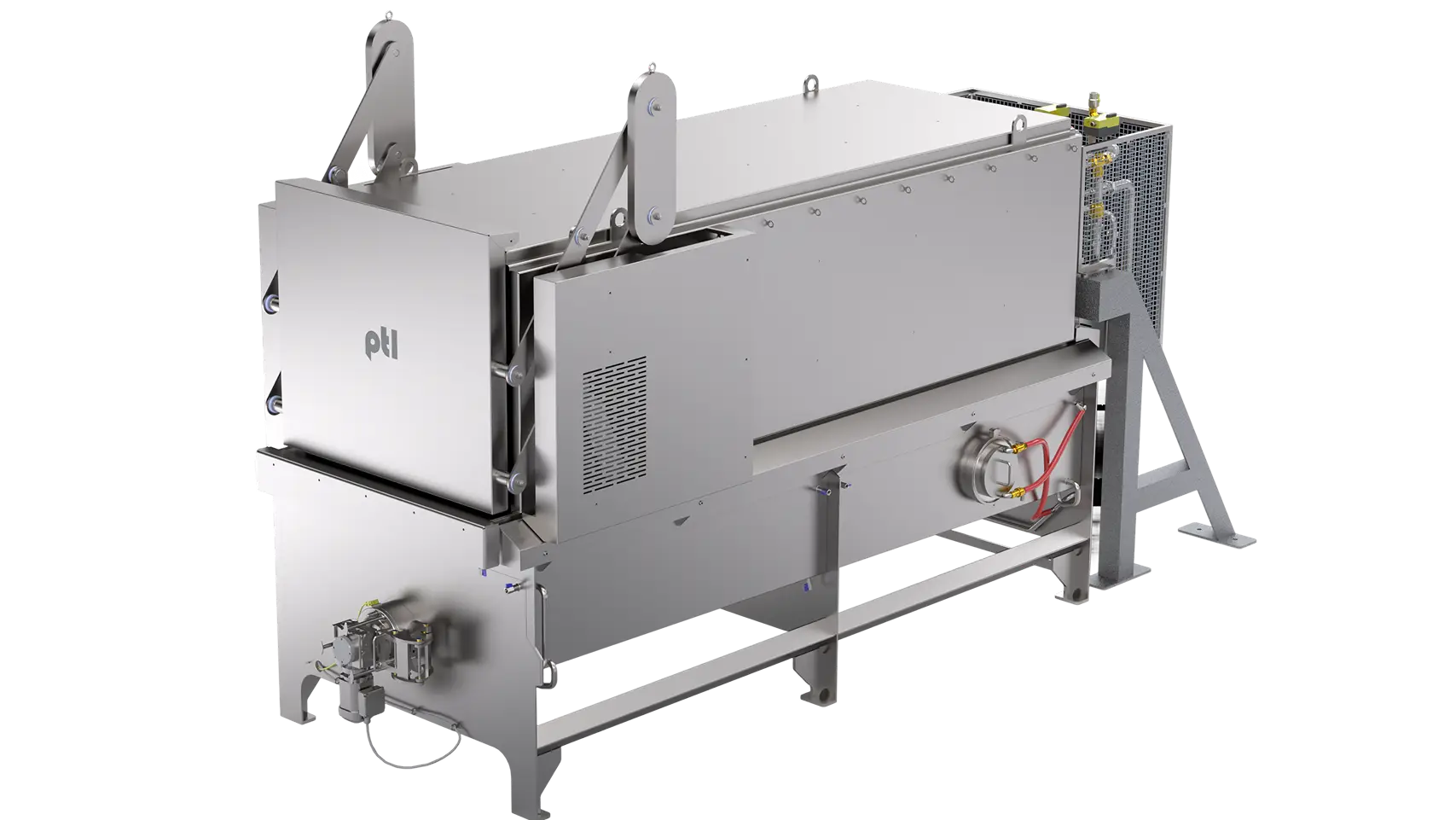

Inline
Length: 143.7" [3650mm] Depth:70.9" [1800mm] Height: 126.0" [3200mm]

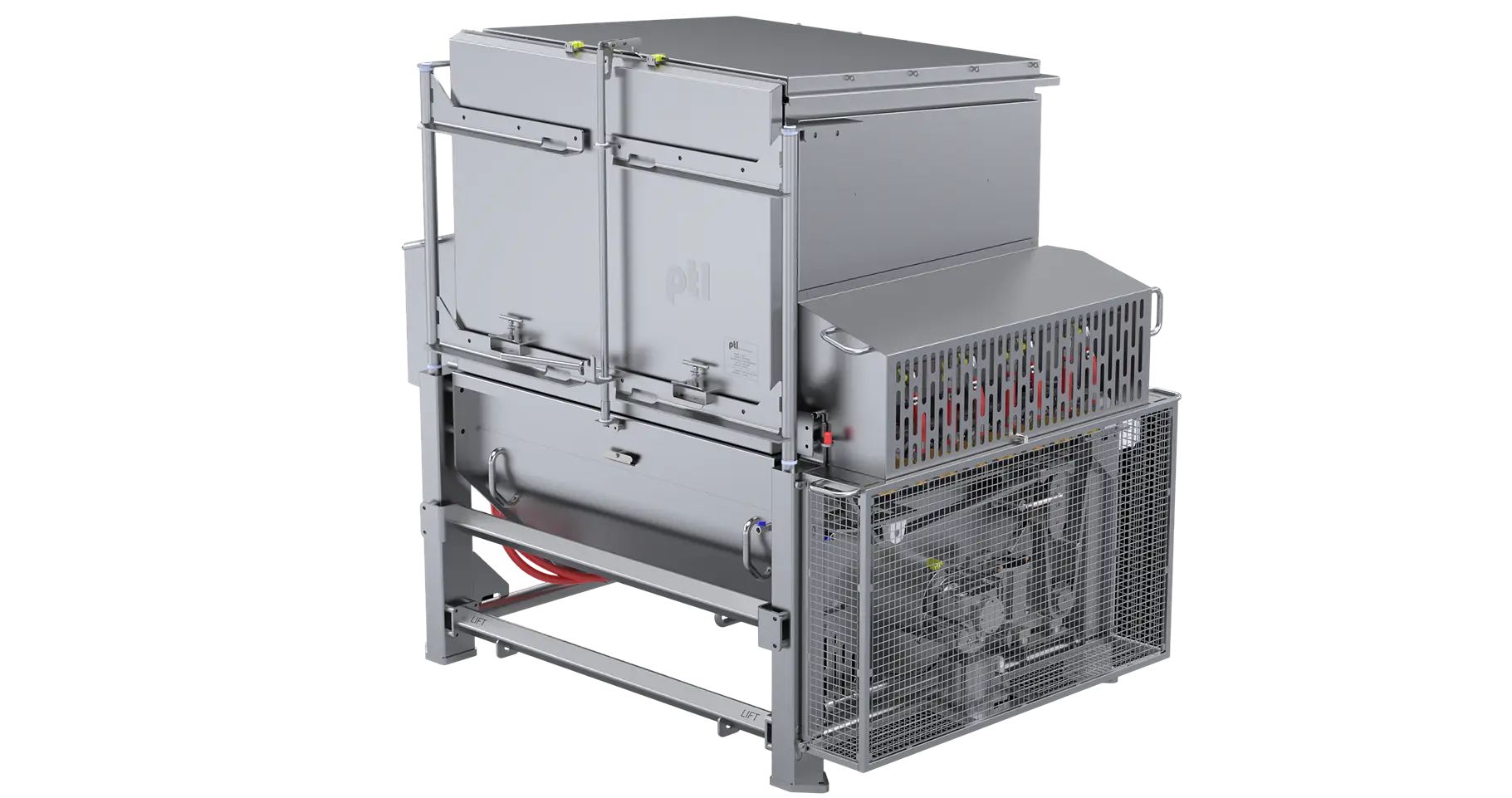

Rotary
Length: 96.5" [2450mm] Depth:80.7" [2050mm] Height: 100.4" [2550mm]

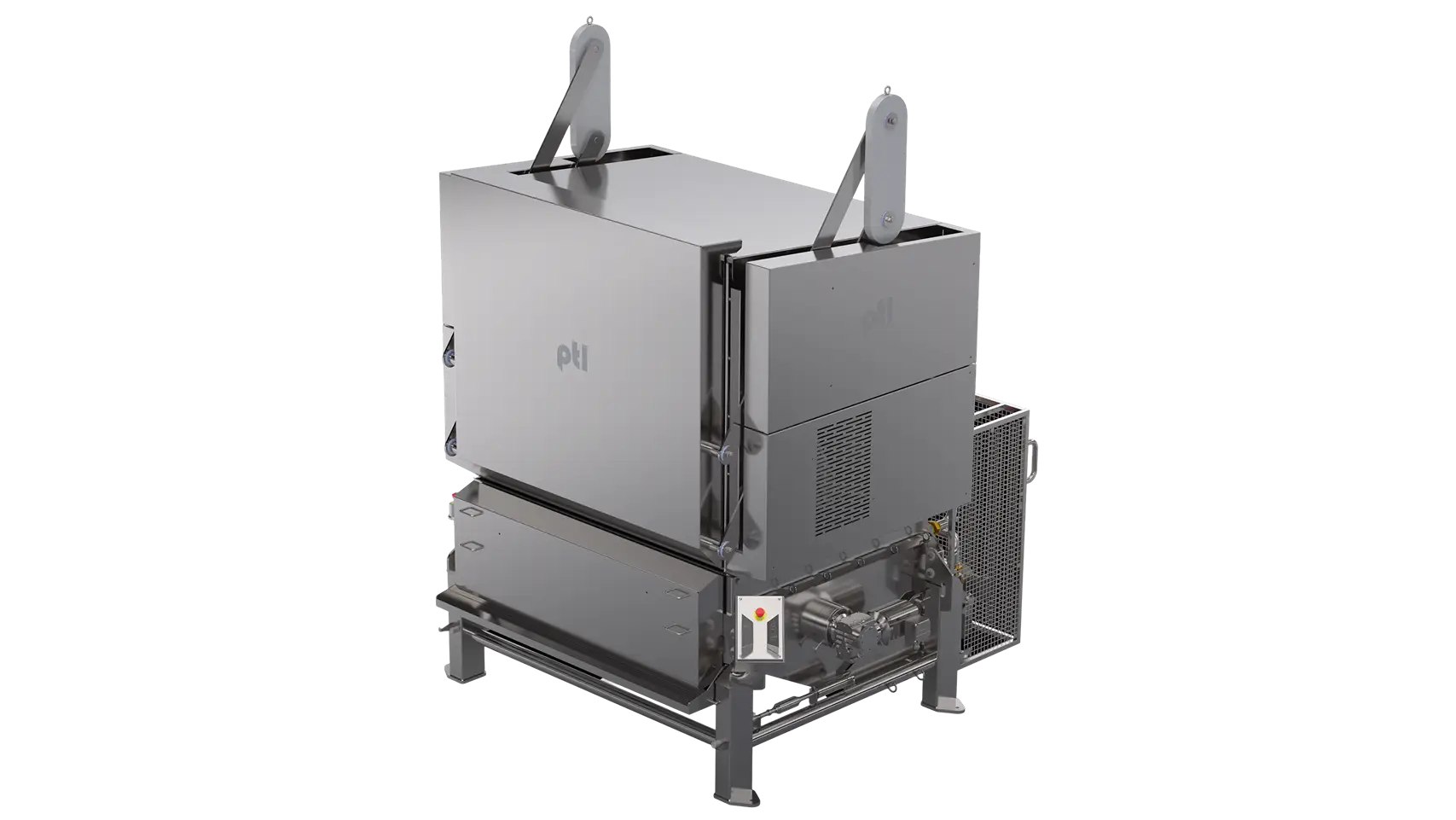

SB3
Length: 98.4” [2500mm] Depth: 90.5” [2300mm] Height: 126” [3200mm]

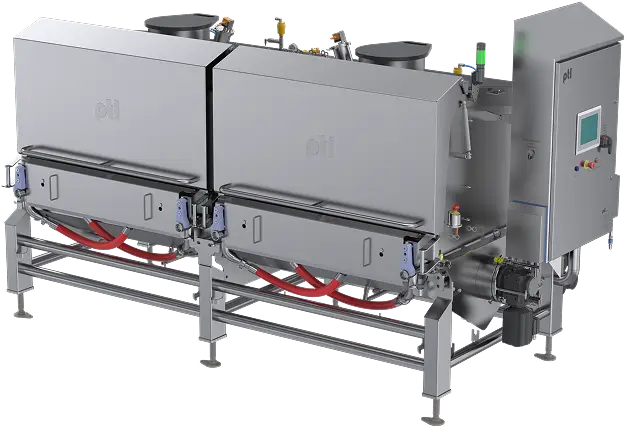

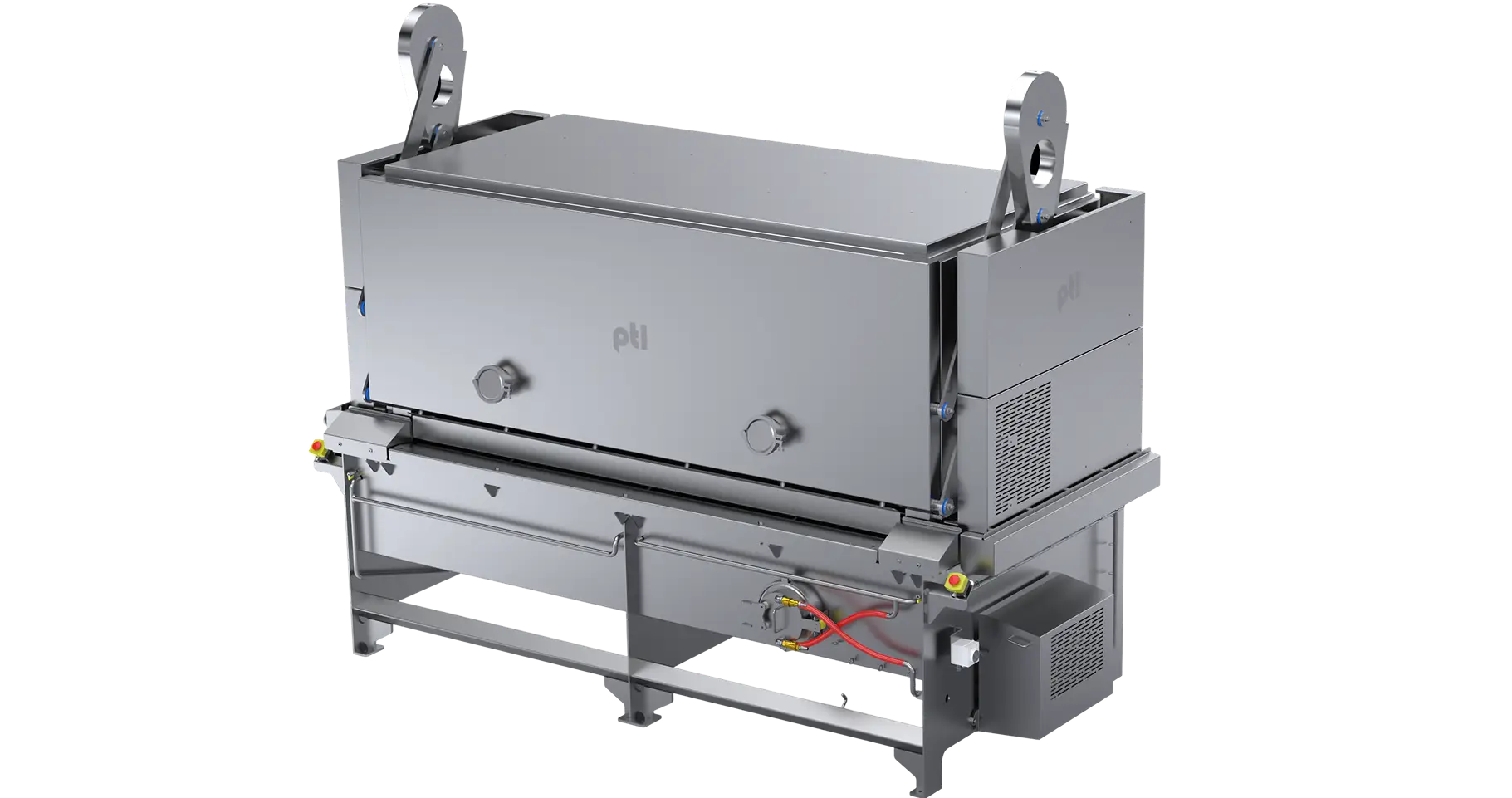

Side-By-Side
Length: 163.4" [4150mm] Depth:76.8" [1950mm] Height: 126.0" [3200mm]
Frequently asked questions
If you don't find the information you need here, please reach out to our team at any time.
It can melt product at any temperature up to 80C (175F). Melted product in the holding tank below can also be maintained at temperatures of up to 60C (140F).
Yes, the product outlet will connect to existing process equipment (with a triclover or your preferred connection). The melter also includes a triclover connection at the rear of the tank for product return to the melter, if required.
Yes, we offer several types of product delivery systems from the melter to your existing equipment. These include product filters and magnets, pumps, jacketed pipelines and sieve systems.
Contact us for a free consultation to discuss your requirements.

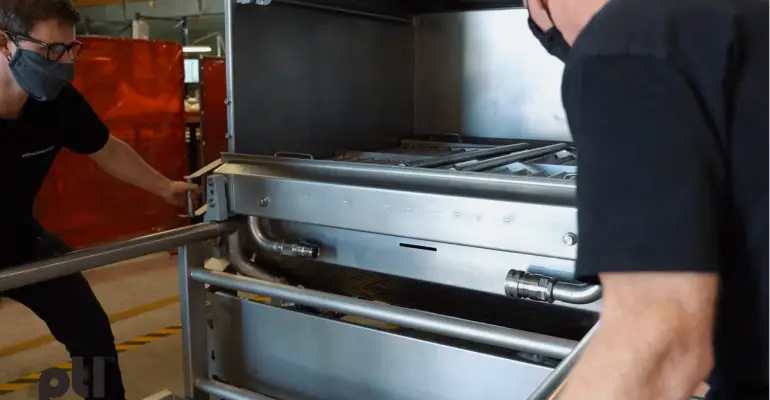

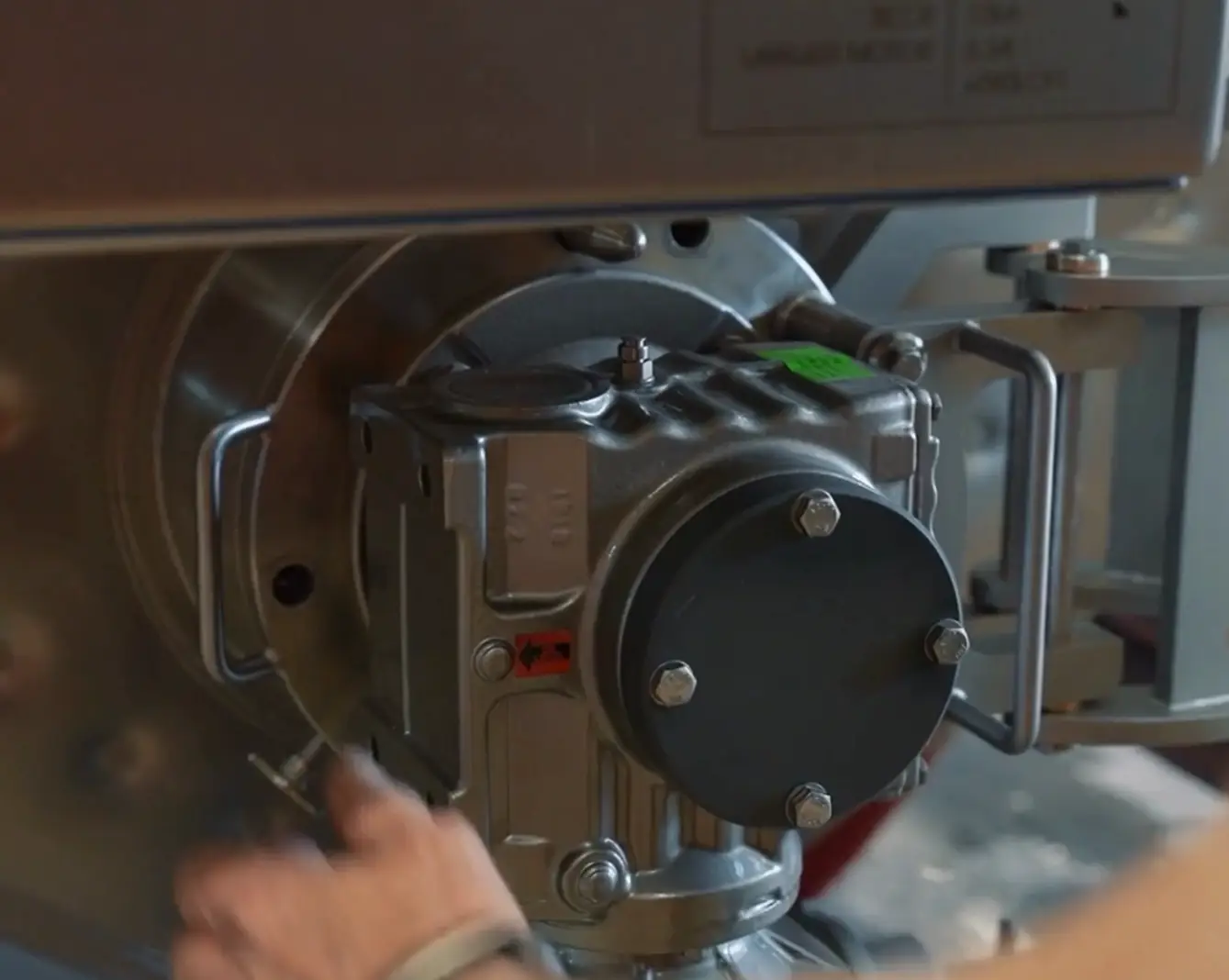

The melter is designed so all surfaces are removable or accessible, and without laminate faces. It has removable components to improve cleaning so you can meet strict allergen requirements. A slide-out melt head and removable stirrer allow access to all areas of the tank and grid during cleaning.
Yes, they are independent control zones.
The water heating has a safety cut out temperature setting for both zones.
It has a much smaller foot-print, but provides more power, faster priming, increased flexibility, easier access for cleaning and better availability of molten product. It's portable, so you can also locate it next to the use point.
No. The tank high level sensor will shut down the melt grid heating at the selected height.
Yes. We can also use other heat sources if preferred, such as gas, plant hot water, and steam.
The melter is specifically designed for chocolate and compound chips, wafer, buttons and small blocks. However you can also melt cocoa liquor, cocoa butter, shortening and other fats in small and large block form (up to 1 ton).
